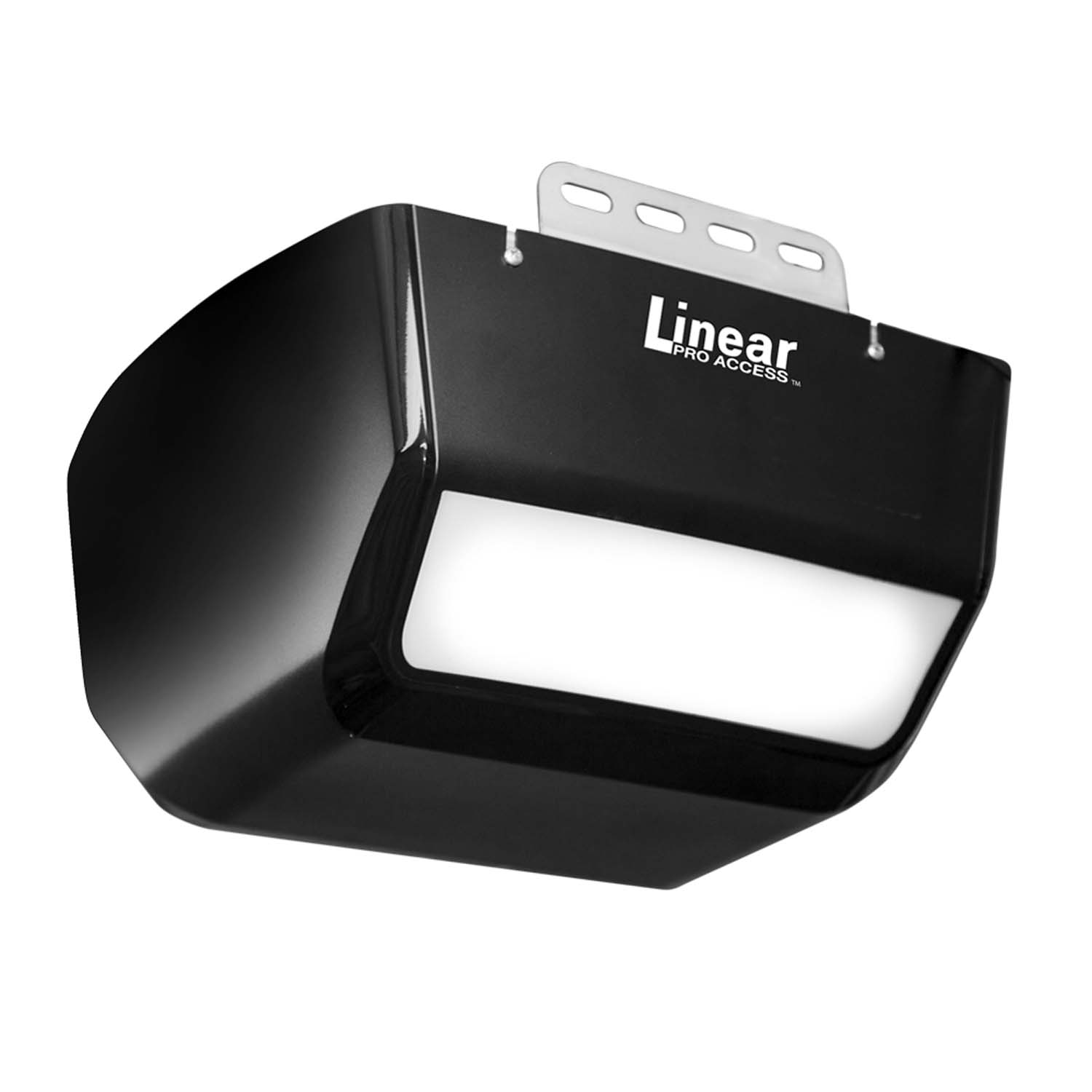

Smart Garage Door Operator

LDCO852

The smart operator with an ultra-quiet, energy-efficient, DC-powered motor that runs at an AC-equivalent speed. Our smart technology provides monitoring and control anytime, anywhere with Wi-Fi connectivity. Smooth, quiet, long-term reliable. Included Battery Backup for peace of mind, plus smart wall station and three-channel transmitter.

Description

The smart operator with an ultra-quiet, energy-efficient, DC-powered motor that runs at an AC-equivalent speed. Our smart technology provides monitoring and control anytime, anywhere with Wi-Fi connectivity. Smooth, quiet, long-term reliable. Included Battery Backup for peace of mind, plus smart wall station and three-channel transmitter.

Features

  • Wi-Fi connectivity with free Linear app
  • Real-time monitoring and control of garage door — anywhere, anytime
  • Your garage door opens when you arrive home and closes when you leave — hands free
    Up to ten authorized users
  • Set custom access and permissions for each user
  • Scheduling of door and light operation, including timed, automatic door closing
    Compatible with Amazon Alexa™, Google Assistant™, HomeLink™ and IFTTT™
  • Ultra-smooth, quiet performance thanks to variable speed operation
  • Dimmable Dual-LED light panel, 2000 Lumens, 2x 100W equivalent, energy efficient
    Integrated battery backup included for peace of mind
  • Self-diagnostic, self-adjusting system continually checks for proper operation
    American engineering and quality assurance
  • Low-power standby mode dramatically reduces energy consumption
  • Supplies 800 Newtons of lifting force for heavy doors
  • Works with belt-drive or chain-drive 7′, 8′ or 10′ Rails
  • Built-in MegaCode format receiver

Included:
1x Garage Door Operator Head
1x Back Up Battery
1x LPWWS WiFi Wall Station
1x MTR3 3-button visor remote Control
1x Obstacle-Sensing Beams (w/35’ of wire)
1x Mounting Hardware
1x Wall Station wire (27’)

Specifications

Dimensions::
:
With 7’ HBT7C/HCT7C rail)::
Installed Length:124.5”
Maximum Door Opening:7’ ‘6”Maximum Door Height (with optional rails): 8’
Headroom Clearance Required: 1.5”
:
With 8’ HBT8C/HCT8C rail)::
Installed Length: 139″

Warranty

Motor: Lifetime

Mechanical: 5 years

Electronics: 1 year
