Garage Door Opener

LCO75

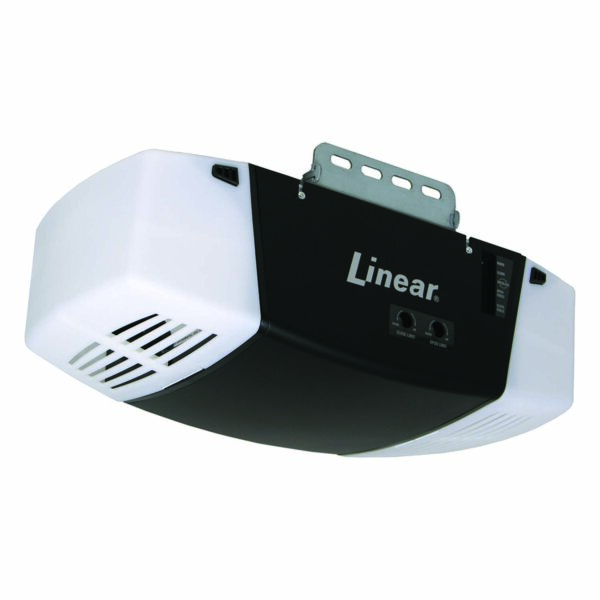

The Model LCO75 3/4 HP Deluxe Dual Lamp Garage Door Operator is Linear’s most powerful door operator yet. It can be used in light-duty commercial installations or in residential applications with heavy carriage house style garage doors. The LCO75 has a maximum duty cycle rating of 13 operations per hour; 50 operations per day, far more than other operator designs. The LCO75 can be used with Linear’s belt-drive or chain-drive rail systems in 7-foot, 8-foot, and 10-foot lengths (10-foot rails available in chain-drive only). The rails are pre-assembled and pre-tensioned for quick and simple installation. The standard “T-rails” can be converted to stronger “I-rails” with Linear’s bolt-on Carriage House Conversion Kits CHCR-7/8, CHCR-8, and CHCR-10. The LCO75 includes infrared safety beams, a 3-button Model MCT-3 transmitter, a lighted deluxe wall station with vacation mode radio disable switch and courtesy light control button.

Description

The Model LCO75 3/4 HP Deluxe Dual Lamp Garage Door Operator is Linear’s most powerful door operator yet. It can be used in light-duty commercial installations or in residential applications with heavy carriage house style garage doors. The LCO75 has a maximum duty cycle rating of 13 operations per hour; 50 operations per day, far more than other operator designs. The LCO75 can be used with Linear’s belt-drive or chain-drive rail systems in 7-foot, 8-foot, and 10-foot lengths (10-foot rails available in chain-drive only). The rails are pre-assembled and pre-tensioned for quick and simple installation. The standard “T-rails” can be converted to stronger “I-rails” with Linear’s bolt-on Carriage House Conversion Kits CHCR-7/8, CHCR-8, and CHCR-10. The LCO75 includes infrared safety beams, a 3-button Model MCT-3 transmitter, a lighted deluxe wall station with vacation mode radio disable switch and courtesy light control button.

Features

  • All steel frame
  • Noise-reducing technology for quieter operation
  • Commercial grade rail system
  • Easy external limit adjustment
  • Quick release door arm for manual operation
  • Automatic reconnect trolley
  • Standard door speed is approximately 9 inches per second
  • Standard rail and chain assemblies for 8, 10, 12, and 14 foot doors
  • Motor thermal overload protection
  • Torque sensing reversing
  • Solid state control circuitry
  • Deluxe lighted wall station
  • 3-Button MegaCode transmitter
  • Built-in MegaCode format receiver
  • Includes infrared photo eye safety beam
  • Dual courtesy lights

Included:
1x Garage Door Operator Head
1x Deluxe Illuminated Wall Station
1x MTR3 3-button visor remote Control
1x Obstacle-Sensing Beams (w/35’ of wire)
1x Mounting Hardware
1x Wall Station wire (27’)

Other Specifications

Max. Duty Cycle:13 cycles/hour, 50 cycles/day
:
Max. Door Height: 14 ft.
:
Dimensions::
:
With HBT7C/HCT7C rail::
Installedl Length: 126.5″
Maximum Door Opening: 7’ ‘6”Maximum
Door Height (with optional rails): 14’
Headroom Clearance Required: 1.5”
:
With HBT8C/HCT8C rail: :
Installed Length: 141″
:
With HCT10C rail::

Installed Length: 161.5″
:
With HCI12 rail::

Installed Length: 193.8″

Warranty

Motor: Lifetime

Mechanical: 5 years

Electronics: 1 year
