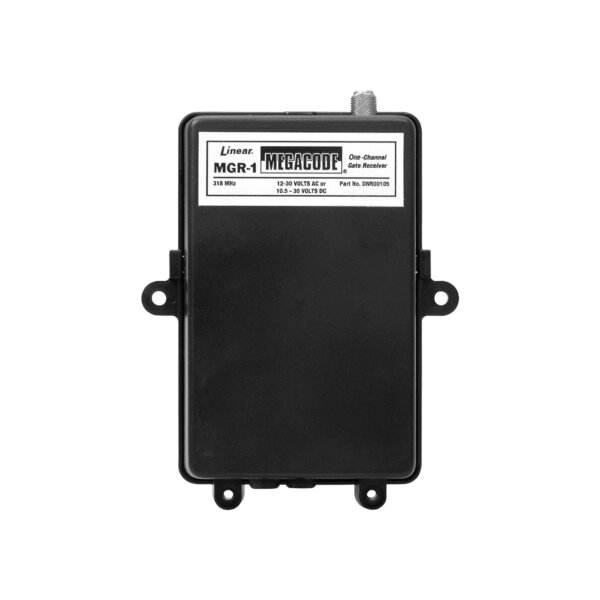

MGR

1-Channel Gate Receiver

The MGR is a 1-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed.

Description

The MGR is a 1-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.


Part Number: DNR00104

Features

  • Single Form ”A” (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
  • Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
  • Memory: storage for up to 40 MegaCode transmitters
  • Power: 12 – 30 VAC or 10.5 – 30 VDC
  • Codes: 1,000,000+ (MegaCode format)
  • RF frequency: 318 MHz
  • Dimensions: 3.625″ W x 5.25″ H x 1.5″ D
