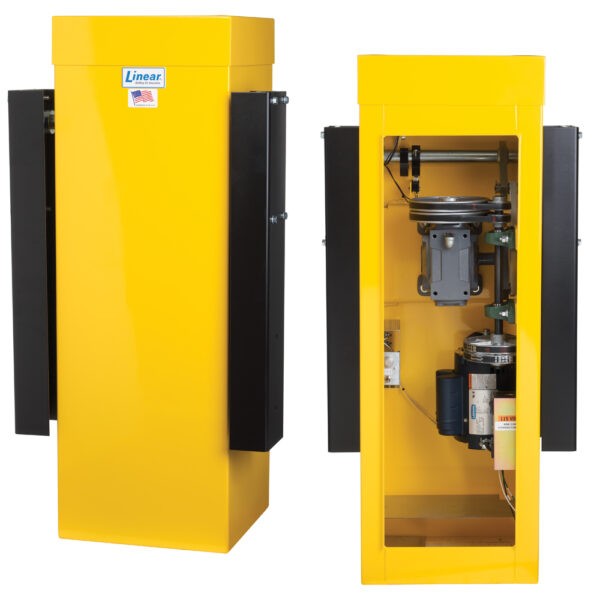

SG Series – Barrier Gate Opener

SG-D-25-211-YS

Slower operating, counter balanced wishbone arm. For low traffic industrial vehicular applications, available in 1/2 horsepower, 115V or 230V supply voltage, custom arm length.

Description

Slower operating, counter balanced wishbone arm. For low traffic industrial vehicular applications, available in 1/2 horsepower, 115V or 230V supply voltage, custom arm length.

Part Number: SG Series


Features

  • Integral APeX Controller
  • Power on/off switch
  • Duplex receptacle (115 VAC units only)
  • 24 VDC permanent magnet motor (SG-D only)
  • 115 VAC supply converted to 24 VDC for motor and controls (SG-D only)
  • Dual batteries charged by 115 VAC or optional solar panels (SG-D only)
  • On-board APeX Controller three-button control station
  • All accessory connections 24 VDC
  • Easily adjustable cam-operated limit switches
  • Lockable and removable front cover for easy access
  • Built-in maximum run timer and auto close timer
  • Master/second with simple 3-wire connection
  • Quad V-belt
  • Heavy-duty right angle gear reducer
  • Heavy-duty harmonic link with oil impregnated bronze bushings
  • Motor has manually-resettable overload
  • Full system capable for access control and reversing devices
  • Weather resistant galvanized steel cabinet with powder coat finish
