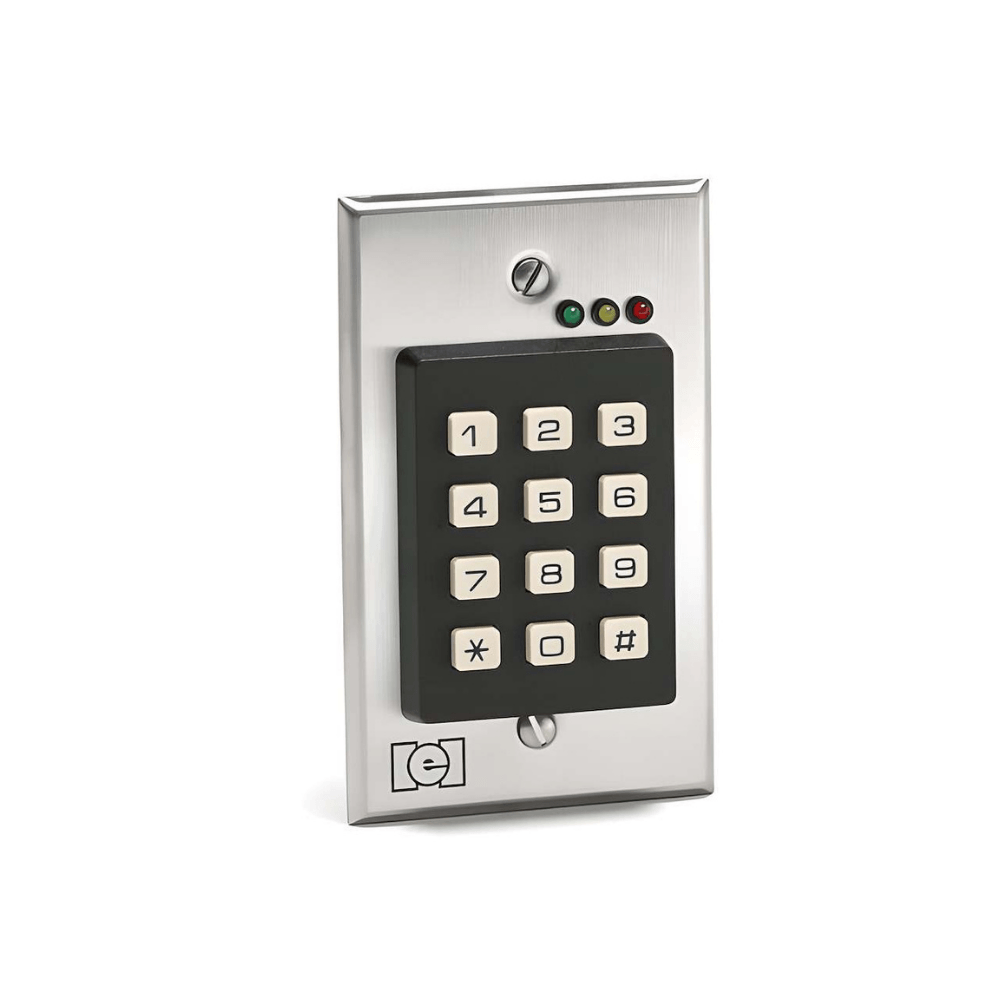

212i: Indoor Flush-mount Keypad

212i: Indoor Flush-mount Keypad


Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED’s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.


  • Operating voltage: 12-24 VAC/VDC – auto adjusting
  • Dimensions: 2.75″ W x 4.50″ H x 1.3 ” D
  • Dimensions including the 293 relay module: 2.75″ W x 4.50″ H x 1.68″ D
  • Current draw: 94 mA maximum (add 30 mA for each relay)
  • Temperature tolerance: -20F to 130F

Order number: 0-211111


120 users
Single gang design
1 SPDT 2 amp relay and three 50mA negative voltage outputs
Optional 293 relay board converts 3 voltage outputs to SPDT relays
Indoor use only
Functionality mode: 212, 232
