Description

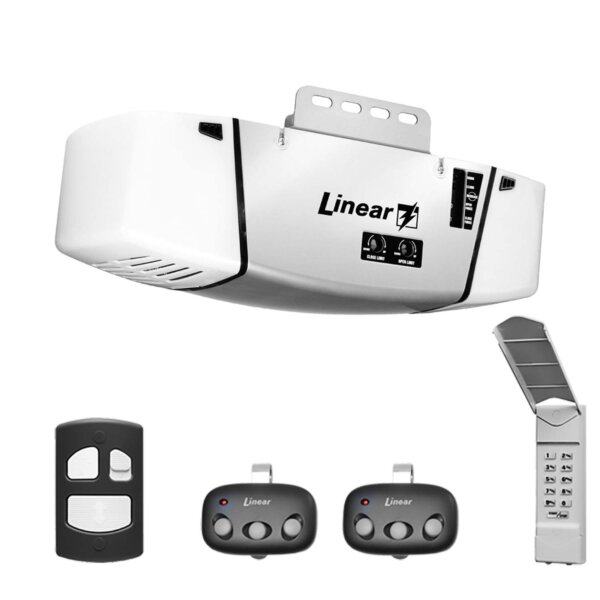

Dual-lamp 1/2 HP residential garage door operator with vibration isolation mounting brackets, installer kit, includes HBT8C 8-foot belt drive rail, two MCT-3 transmitters, and one MDTK keypad transmitter.
Part Number: LSO50-2T1KB8
View our Rails.
All garage door openers are sold without rails, excluding kits. Please click below for our full line of garage door rail products:
Features
- Includes a 8-foot belt-drive rail, two 3-button MCT-3 visor transmitters, one MDTK keypad transmitter and a deluxe wall station
- Noise reduction technology
- Smooth, quiet operation
- Diagnostic system indicates six possible trouble conditions
- Dual 100-watt courtesy lights (bulbs not included)
- Built-in MegaCode format receiver
- All operator controls and indicators on one side
Included:
1x Garage Door Operator Head
1x 8-foot Belt-Drive Rail
1x Deluxe Illuminated Wall Station
2x MTR3 3-button visor remote Control
1x MDTK keypad transmitter
1x Obstacle-Sensing Beams (w/35’ of wire)
1x Mounting Hardware
1x Wall Station wire (27’)
Specifications
Dimensions::
:
With 8-foot rail::
Installed Length: 136″
Maximum Door Opening: 7’ ‘6”Maximum
Door Height (using the included 7-foot rail): 10’
Headroom Clearance Required: 1.5”
